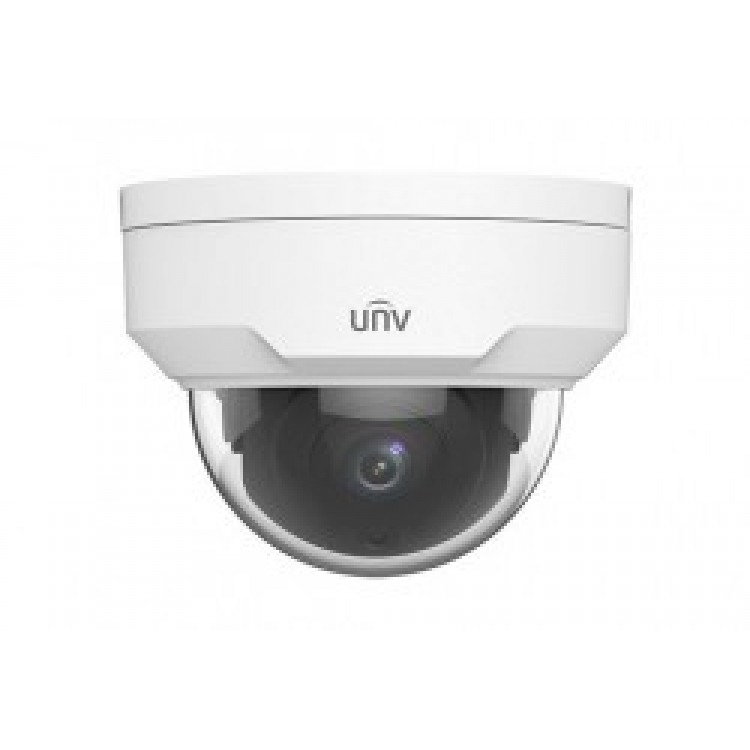

IPC322SR3-DVPF28-C

IPC322SR3-DVPF40-C

Camera

Sensor

1/2.8", 2.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F1.6

4.0mm@F1.6

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42

16.8

8.4

4.2

4.0

60

24

12

6

Angle of View (H)

112.7°

86.5°

Angle of View (V)

60.1°

44.1°

Angle of View (O)

146.5°

106.4°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 75°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.003Lux (F2.0, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52 dB

IR Range

Up to 30m (98ft) IR range

wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

9:16 Corridor Mode

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

NA

HLC

Support

BLC

Support

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Network

1 RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4W

Dimensions (Ø x H)

Φ108.5 x 81mm (Ø4.28” x 3.2”)

Net Weight

0.45kg (0.99lb)

Material

Shield：PC
Body：metal
Bottom plate：metal

Working Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection

2KV

Ingress Protection

IP67

Vandal Resistant

IK10
