Model

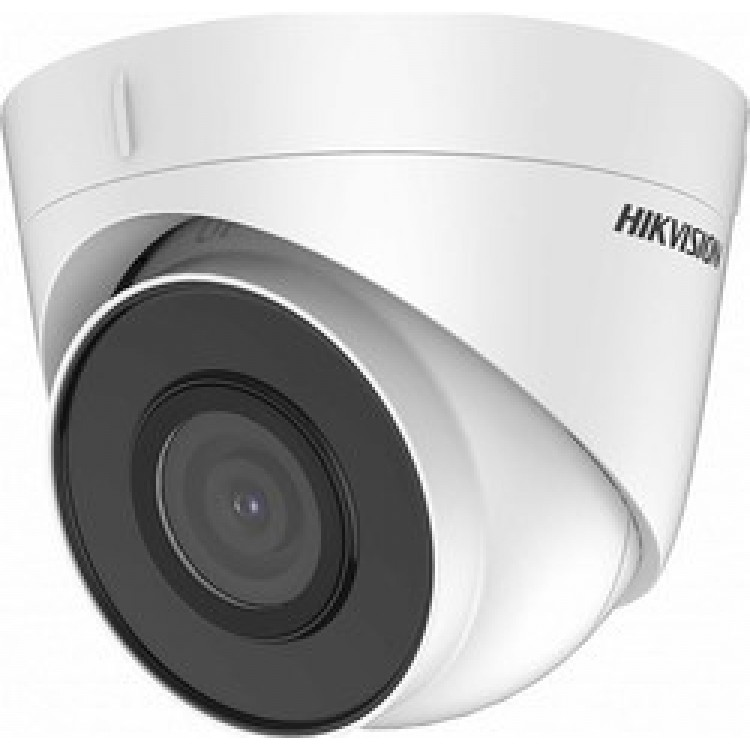

DS-2CD1323G0-IU

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8/4 mm

Aperture

F2.0

2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

FOV

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

Main Stream

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

Sub Stream

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Compression

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio(-U)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, exception (illegal login)

Linkage Method

Upload to FTP, notify surveillance center, send email, trigger capture

Region of Interest

1 fixed region for main stream and sub-stream


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: administrator, operator and user

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Interface

Communication Interface

1 RJ45 self-adaptive Ethernet port

Audio

1 audio input (built-in microphone), mono sound

Interface Style

Pigtail style interface

General

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Reset

Reset via web browser and client software

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W

Material

Camera body: metal, bottom base : plastic

Camera: 94.4 × Φ110 mm (3.7" × Φ4.3")

Dimensions

With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Camera: Approx. 354 g (0.8 lb.)

Weight

With package: Approx. 681 g (1.5 lb.)

Approval

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

EMC

2015, KN 35: 2015

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am

Safety

1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP66 (IEC 60529-2013)
