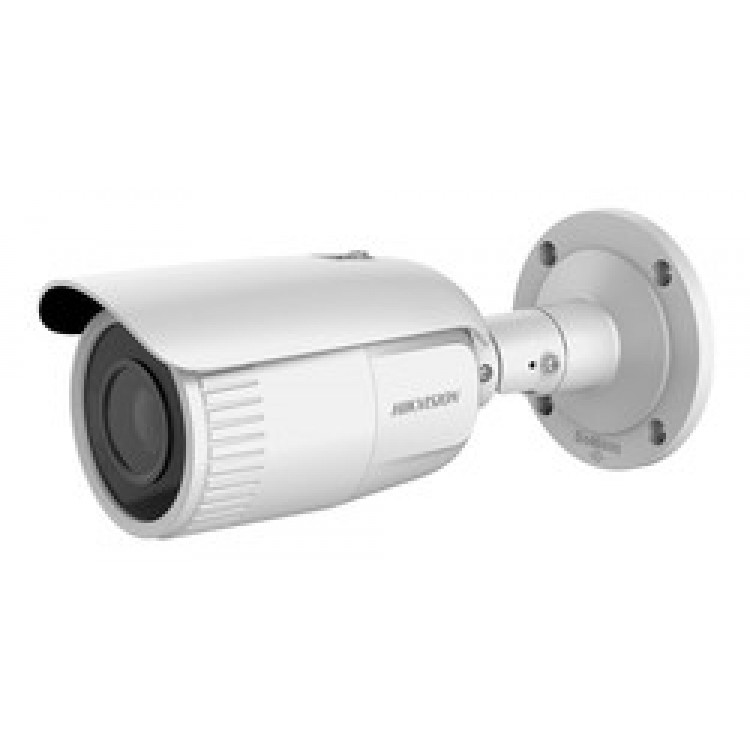

Model

DS-2CD1623G0-I

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s, support slow shutter

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR cut filter

Digital Noise Reduction

3D DNR

WDR

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens

Focal Length

2.8 to 12 mm

Aperture

F1.6

-I: Manual

Focus

-IZ: Auto

FOV

Horizontal field of view: 98° to 34° Vertical field of view: 51° to 19° Diagonal field of view: 115° to 40°

Lens Mount

Φ14

IR

IR Range

Up to 30 m

Wavelength

850 nm

Compression Standard

Main stream: H.265/H.264

Video Compression

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

1920 × 1080

Main Stream Max. Frame Rate

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

Max. Frame Rate

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC, 3D DNR

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Image Settings

Day/Night Switch

Auto, scheduled

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G ), local storage and ANR

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

Alarm Trigger

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP,

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

Up to 32 users

User/Host

3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Video Output (Without -Z)

1Vp-p composite output (75 Ω/BNC)

Reset Button

Yes

General

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Supply

-IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W

Power Consumption and Current

-I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W

IP67

Protection Level

TVS 2000V lightning protection, surge protection and voltage transient protection

Material

Metal

Dimensions

Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")

Camera: approx. 1015 g (2.2 lb.)

Weight

With package: approx. 1540 g (3.4 lb.)
